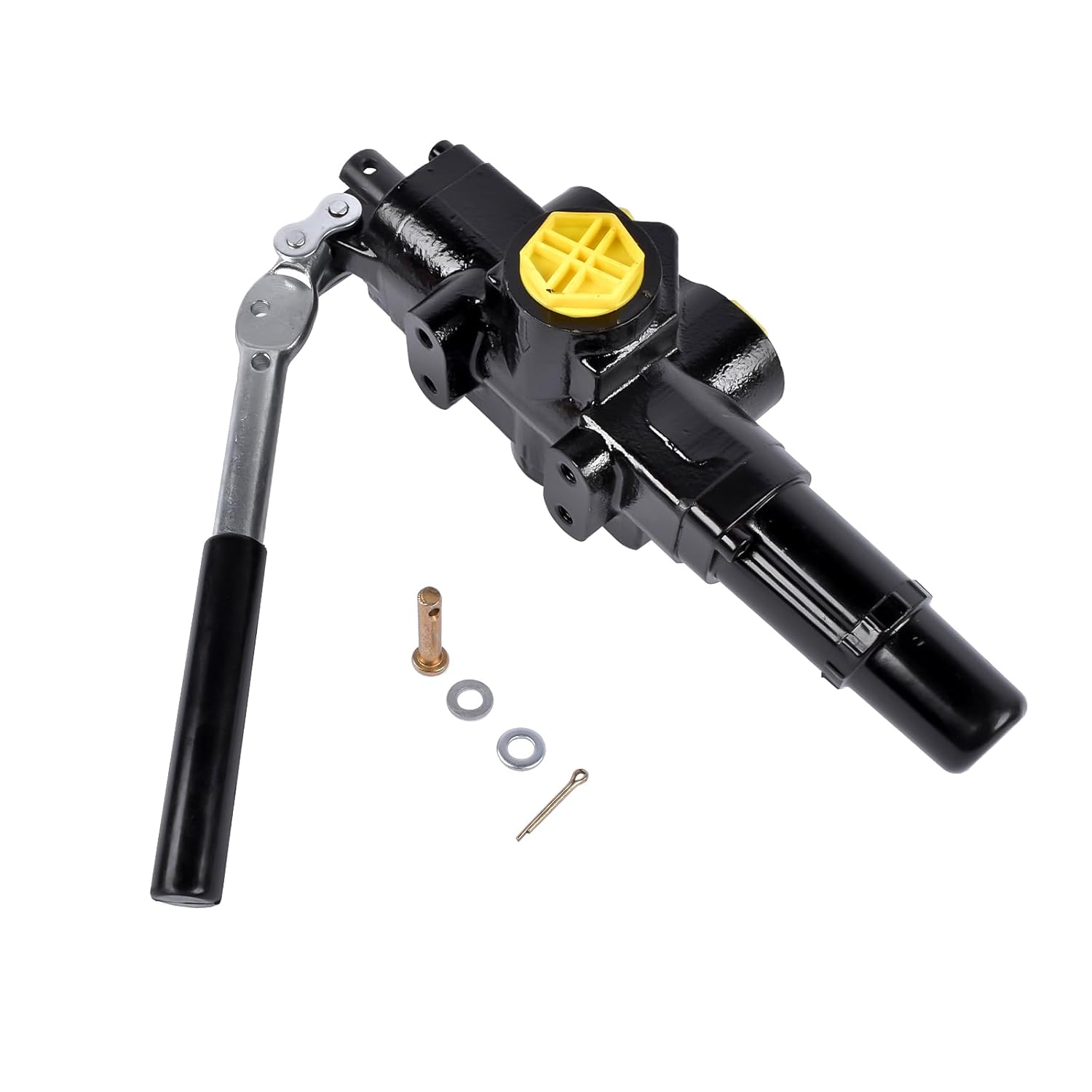

25 GPM Hydraulic Log Splitter Directional Control Valve, Adjustable Auto Return Detent Lever Handle, 3500 PSI (1/2" Work Ports)

SpecificationsSingle spool;Maximum pressure: 3500psi;Working port: 1/2'' NPT;Inlet/outlet ports: 3/4'' NPT;Relief valve pressure: 3000psi setting (adjustable);Brake pressure: 700psi setting (adjustable, adjust by unscrewing the end cap);Threaded mounting: 5/16''-18;Mounting bracket holes: 1'' x 2-5/8'' (center to center)

• 25 GPM Hydraulic Log Splitter Valve, 25 GPM Hydraulic Directional Control Valve, 3500 PSI Hydraulic Loader Valve, Hydraulic Joystick Control Valve, 1/2" NPT Work Ports
• Replacement for Most Log Splitters Ariens Champion Countyline Cub Cadet Energy SpeeCo Huskee and More Universal
• 【Durable】Made of high-strength castings, which can effectively prevent corrosion and rust, greatly improving its service life.
• 【Convenient and Easy to Use】With reverse port configuration and adjustable braking device. Press forward and release the handle, the valve will return to the neutral position; press backward and release the handle to automatically return the ram to the starting position
• 【Specifications】Single spool; Maximum pressure: 3500 psi; Working interface: 1/2'' NPT; Inlet/outlet port: 3/4'' NPT; Safety valve pressure: 3000 psi setting (adjustable); Brake Pressure: 700 psi setting (adjustable, unscrew end cap to adjust); Threaded mounting: 5/16''-18; Mounting bracket holes: 1'' x 2-5/8'' (center to center)
